Data Logger

With the help of data loggers, oceanographic and geophysical parameters can be monitored cost-effectively and in real time or recorded for later analysis. Nautilus Marine Service GmbH offers a wide range of data loggers and sensors from the Canadian company RBR Ltd. Based in Ottawa, the name RBR stands for the development and manufacture of highly precise sensors and data loggers for applications in oceanography, limnology, geophysics, as well as groundwater and polar research.

Two main factors summarize RBR’s Generation³ instruments: USB-C as the standardized connection and AA batteries, ranging from alkaline to lithium, used in every device.

To easily identify an RBR Generation³ instrument from an older logger, an important mechanical component is highlighted in red for better distinction.

Other important updates of the Generation³ include a further reduction in the instruments’ power consumption, for example, the RBRconcerto³ CTD is now the oceanographic CTD on the market with the lowest power consumption. The input voltage range has also been expanded to 4V to 30V.

The sampling rates have also been improved with | fast8 and | fast16. For CTDs mounted on rosettes and other specialized applications, RBR has developed a data rate of up to 32Hz: | fast32.

Sensors

RBR sensors are industry-leading in terms of accuracy, stability, and power consumption, even under the most challenging conditions.

Their industry-leading low power consumption enables long deployments at depths of up to 6,000 meters, making them the perfect choice for many oceanographic and limnological applications, such as monitoring boreholes, remotely operated underwater vehicles, current measurements, and harbor water levels.

The real-time sensors have​ the following features:

• High accuracy,
• Low power consumption,
• Long deployment times,
• Compact and lightweight,
• RS-232-Output,
• MCBH-6-MP-Connection,

• Depths down to 6000 m

Available sensors:

Temperature (T), pressure (D), dissolved oxygen (DO), optical dissolved oxygen (ODO), photosynthetically active radiation (PAR), radiometer (rad), fluorescence (Fl)

Systems

Komponenten und Systeme zur Unterstützung von Verankerungen und profilierenden Anwendungen.

Unterwasser-Batterie-Kanister

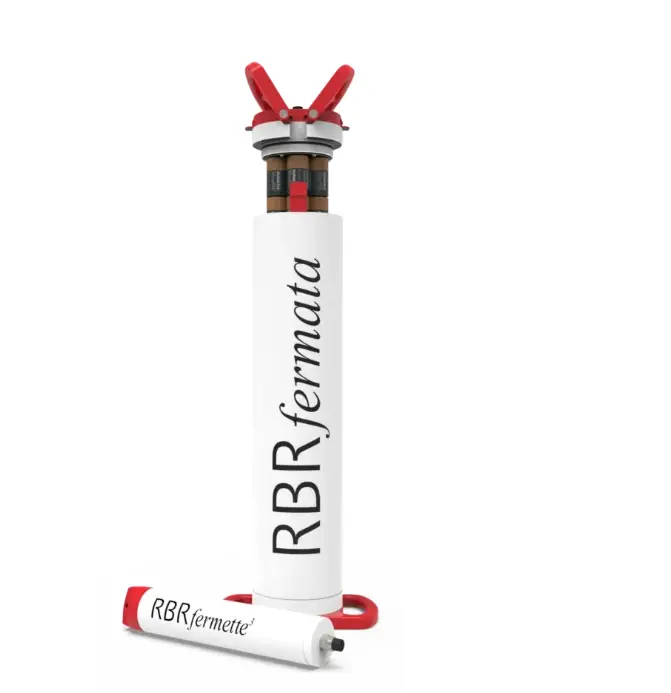

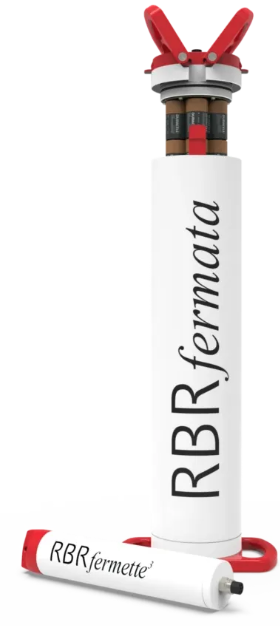

The RBRfermata battery canister significantly extends the deployment duration and versatility of your underwater instruments. It automatically detects the type of battery cells used whether lithium (3.6 V), alkaline (1.5 V), or NiMH (1.2 V) and configures the internal arrangement accordingly to consistently provide the required nominal voltage.

Equipped with 48 D-cells and three MCBH connectors, the RBRfermata is available in either 14 V or 28 V configurations. With an energy capacity of up to 2.8 kWh, it delivers approximately 40 times the capacity of a standard battery pack, making it ideal for long-duration deployments.

An innovative battery carousel and tool-free quick-release latches allow for fast and easy battery replacement even in the field. For specialized applications such as integration with the Wirewalker (DMO), a version with low-profile handles is available for flexible installation.

For added safety, polyfuses are built in to provide overcurrent protection and will automatically reset after a fault.

As an alternative, you can also extend your deployments using the compact RBRfermette³, which features a single MCBH connector and holds 8 AA cells.

Ausgestattet mit 48 D-Zellen und drei MCBH-Anschlüssen, ist der RBR-Fermata wahlweise in 14 V- oder 28 V-Ausführung erhältlich. Mit einer Energiekapazität von bis zu 2,8 kWh liefert er etwa das 40-Fache der Kapazität eines Standard-Batteriegehäuses, ideal für Langzeiteinsätze.

​

​ ​ ​ ​ ​ ​ ​

Smarter-Unterwasser-Batterie-Kanister

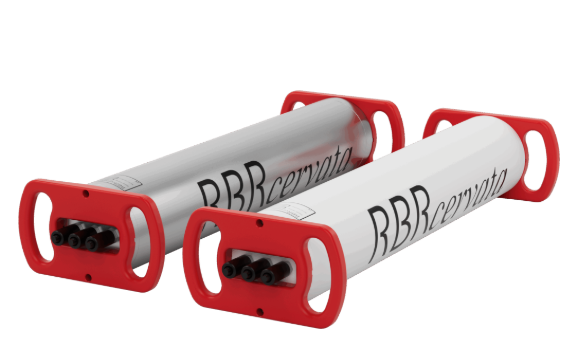

The RBRcervata seamlessly combines the RBRfermata underwater battery canister with the RBRcervello data controller, delivering expanded power and data capabilities for standard RBR instruments. This integrated solution extends deployment durations by up to four years, thanks to its high-capacity power supply and onboard memory.

Die RBRcervata lädt in festgelegten Intervallen die aufgezeichneten Daten vom angeschlossenen Instrument auf ihre interne Speicherkarte. Darüber hinaus ermöglicht sie ein fortschrittliches Einsatzmanagement, z. B. durch:

• Re-Konfiguration des Instruments,
• Synchronisierung der Echtzeituhr,
• und eine rotierende Speicherverwaltung für besonders lange Einsätze.

Instruments can be connected or disconnected at any time. Power delivery remains uninterrupted, even when the data controller enters deep sleep mode, ensuring continuous operation without data loss or downtime.

Key Specifications:

• 128 GB interner Speicher
• Bis zu 3,3 kWh Energiekapazität
• Integrierter Überstromschutz
• Druckausgleichsventil
• Drei MCBH-Anschlüsse
• Für Einsatztiefen bis zu 4000 m

​ ​ ​ ​

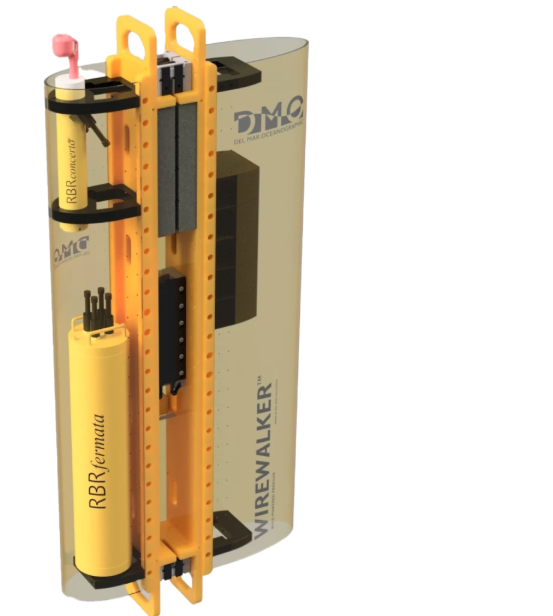

Del Mar Oceanographic Wirewalker wave-powered profiling system

RBR proudly partners with Del Mar Oceanographic (DMO) to offer the Wirewalker, a cutting-edge profiling system powered entirely by ocean wave energy. Designed for simplicity and efficiency, the system tightly integrates mechanical movement, sensors, and telemetry.

Durch den Einsatz des RBRfermata Batteriebehälters lässt sich die Einsatzdauer um den Faktor 40 verlängern, gleichzeitig wird die Energieversorgung für die induktive Datenübertragung an die Oberfläche sichergestellt.

Key Features:

• High-speed vertical profiling powered by surface wave motion
• Standard profiling to 300 m, extendable to 1000 m
• Works with any RBRconcerto³ or RBRmaestro³ instrument
• Custom sensor configurations available
• Suitable for moored or drifting deployments
• Engineered for efficiency, durability, and ease of use
• Real-time profiling data transmission at 6 Hz

​ ​ ​ ​ ​ ​
